Rental Goods User Manual

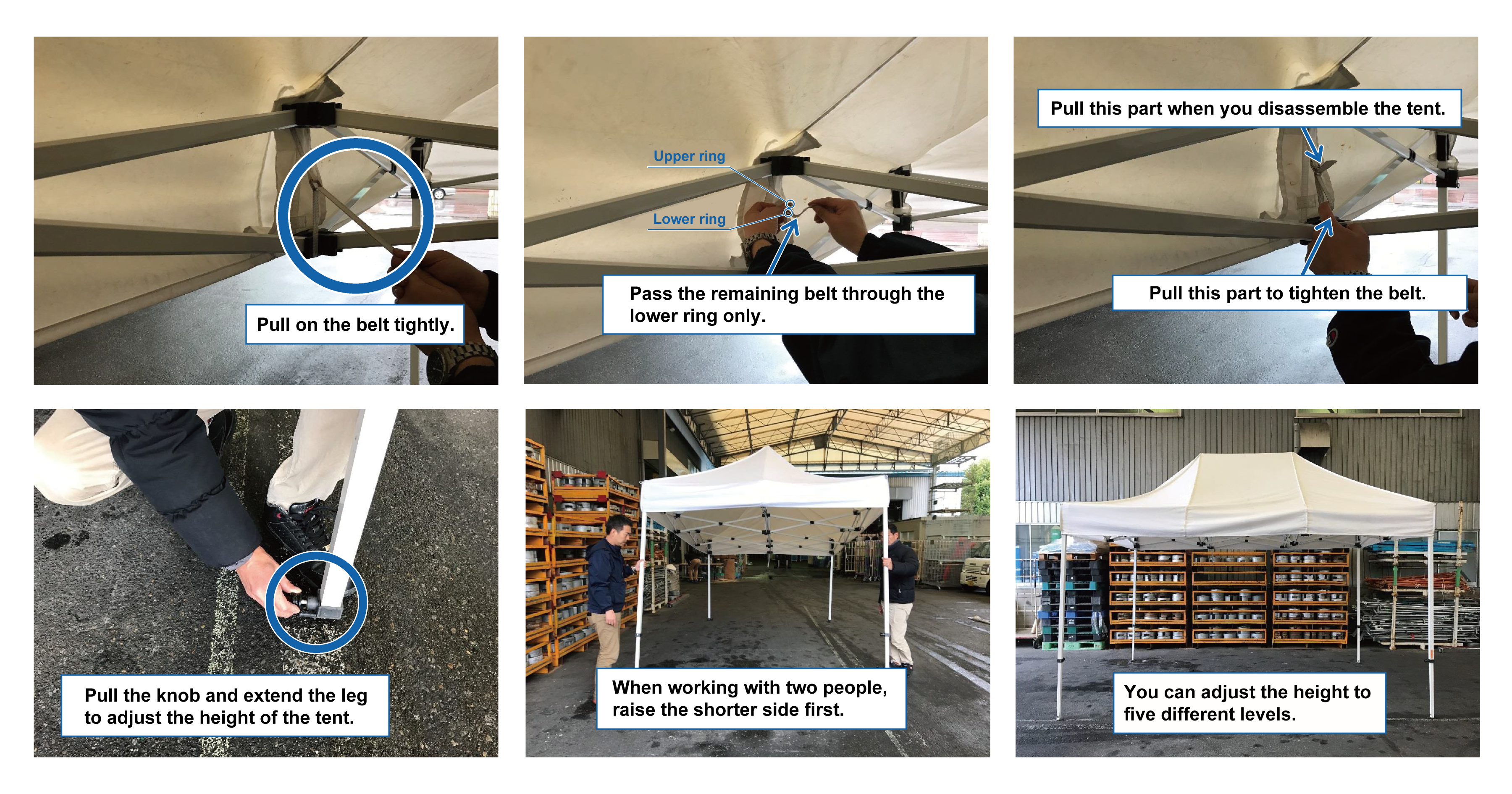

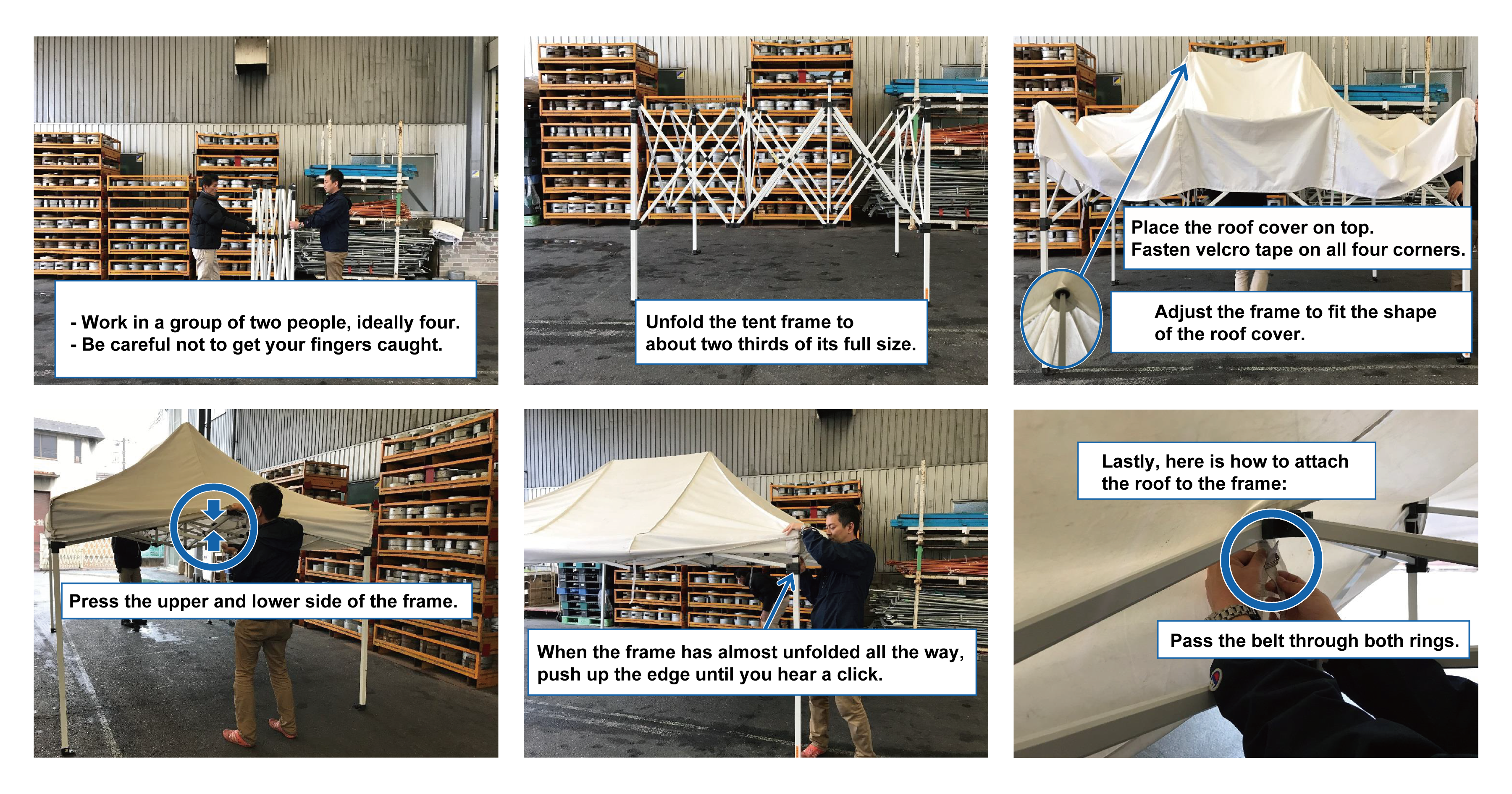

How to Set Up the Tent

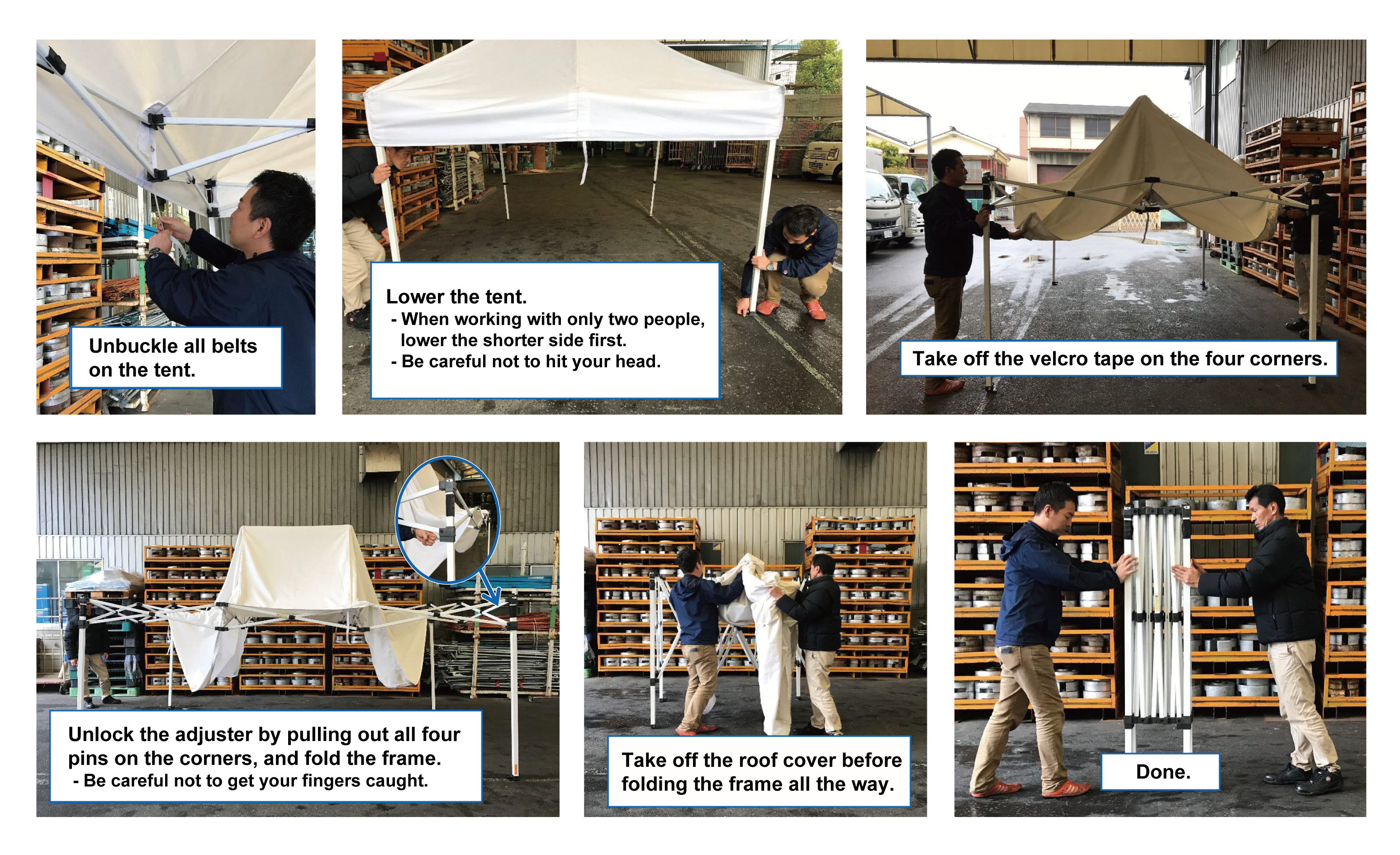

How to Fold the Tent

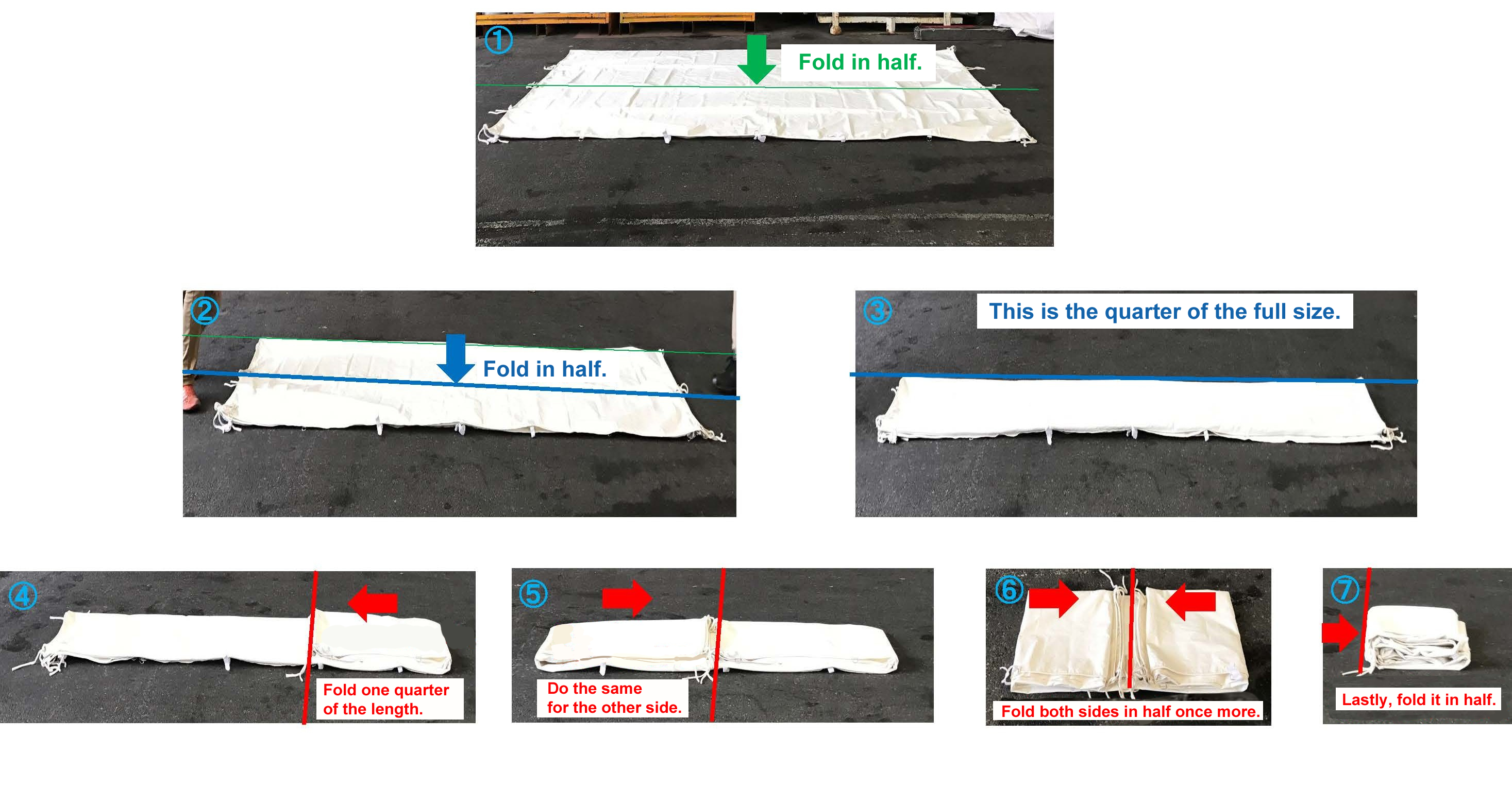

How to Fold the Curtain

Iron Plate

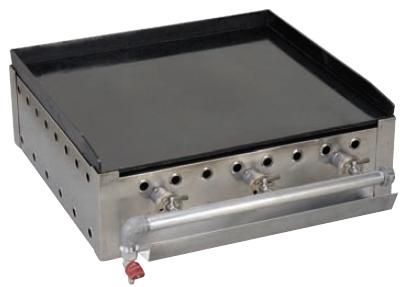

Product Image

• Size：H180mm × W600mm × D550mm
• Weight：47kg
• LP gas usage quantity：0.47kg/h

Attached Products

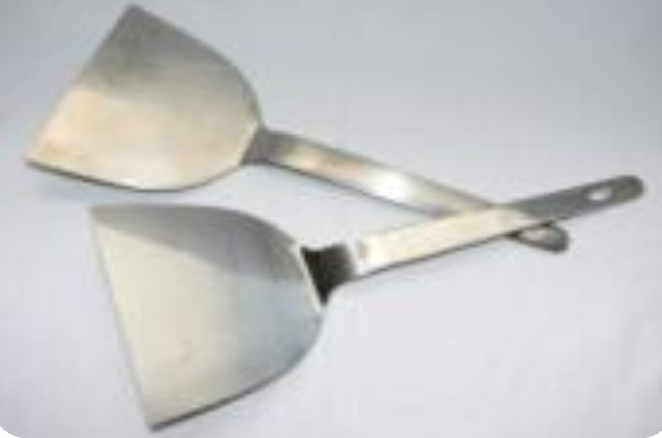

• Set of two spatulas

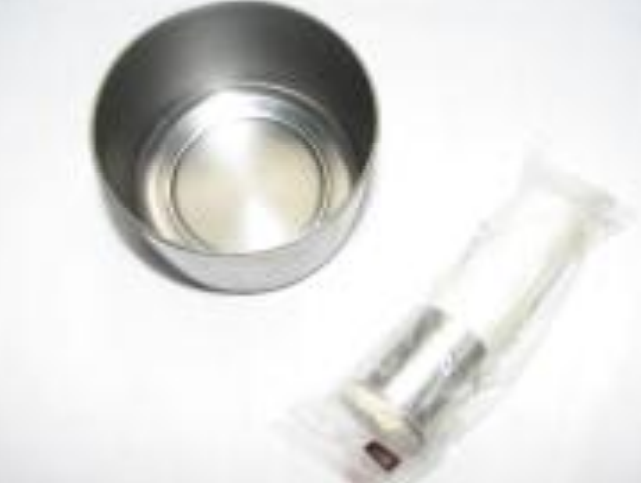

• Oil Spreader

Notes

• If the iron plate has never been used before or has not been used for a long time, it will not ignite instantly due to the air inside the burner or the hose.
  • Repeat the ignition procedure a few times until the air is completely removed from the burner or the hose.
• Be careful when carrying the iron plate since it is very heavy.
  • Please do not hold the gas pipe when carrying the iron plate.
• Confirm that the plate is firmly attached to the body of the iron plate before using it.
• There have been multiple cases in which the body of the iron plate was used upside down. Before using, please check the precautions printed on the bottom side of the iron plate.

Usage Instructions

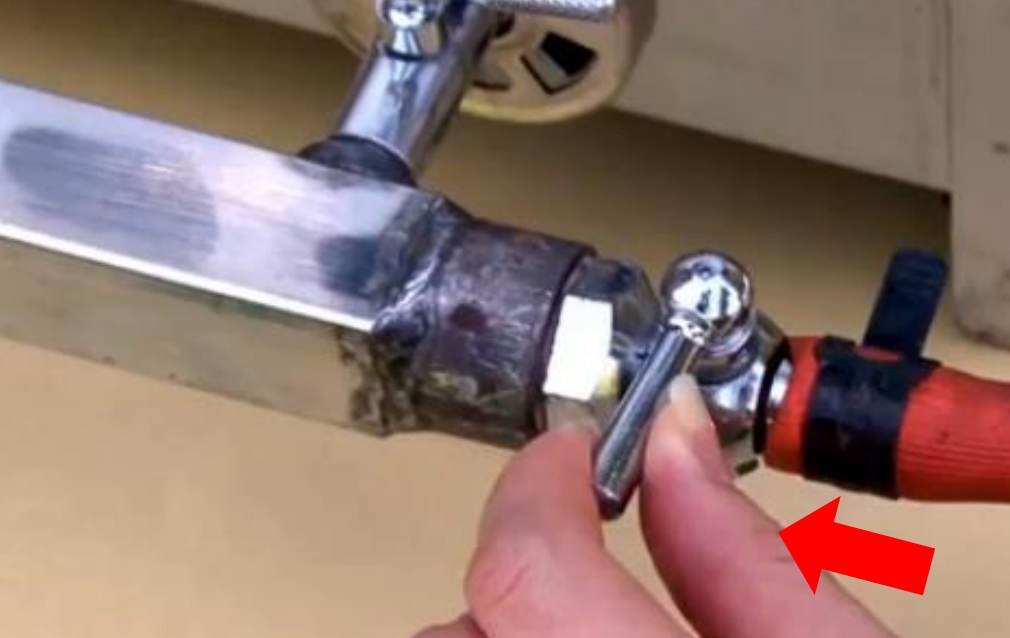

①Connect the Gas Hose

• Insert the hose in the direction of the arrow.
• To prevent the hose from getting off, fix the end with the black clip.

②Opening the Valve

• Open the main tap of the iron plate body and the gas levers at 3-4 places after opening the main valve of the gas tank.

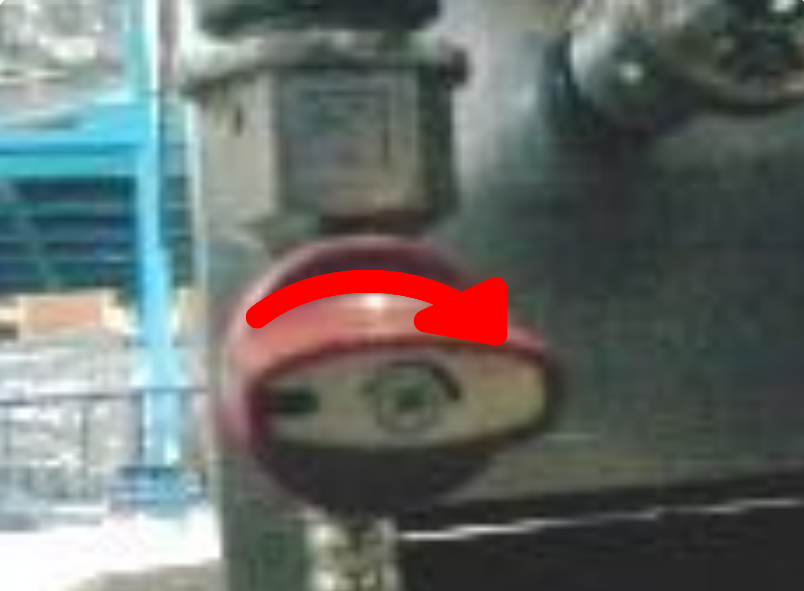

  • The upper picture is the main tap, and the lower picture is the gas lever.
  • Do not fully open the gas lever at first, as the fire may become too large at the point of ignition.

③Ignition

• Place the iron plate on the surface and ignite the gas injection nozzles from the hole on the side.
• Please use a lighter with a long neck instead of other lighters such as 100-yen lighters.
• Please visually confirm that the fire equipment is ignited.
  • It may be difficult to visually check the fire in a bright place.

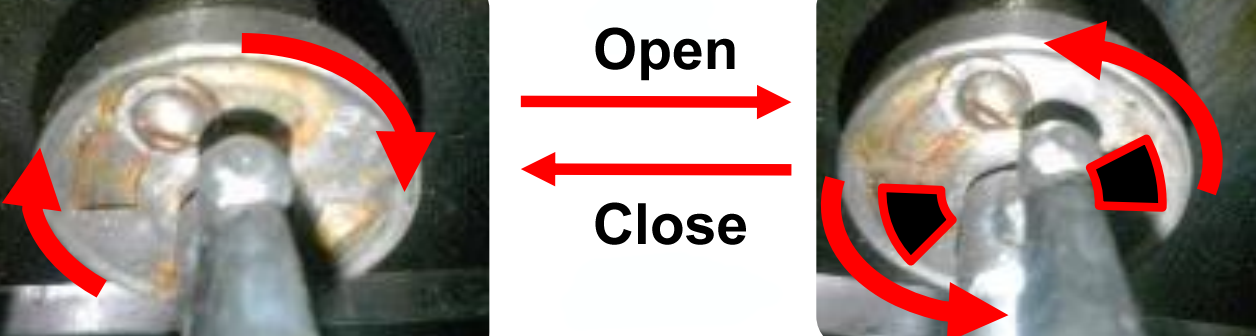

④Air Adjustment

• Red fire means incomplete combustion. Please adjust the air until the flame becomes blue.

Gas Burner

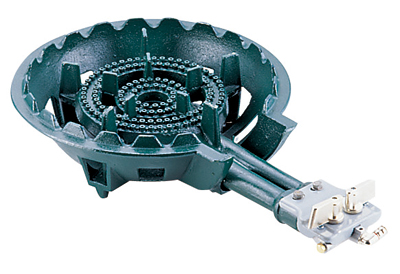

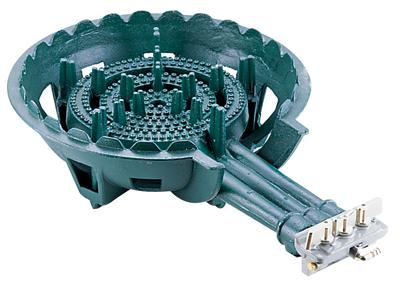

Product Image（Gas Burner）

• Double gas burner LP gas usage quantity：0.52kg/h
• Triple gas burner　LP gas usage quantity：0.95kg/h

Notes　　　　　　

• If the iron plate has never been used before or has not been used for a long time, it will not ignite instantly due to the air inside the burner or the hose.
  • Repeat the ignition procedure a few times until the air is completely removed from the burner or the hose.
• Do not hold the gas pipe when carrying the gas burners.

Usage Instructions　　

①Connecting the Gas Hose

• Insert the gas hose in the direction of the arrow.
• To prevent the hose from getting off, fix the end with the black clip.

　　

②Opening the Valve

• Open the gas lever only after opening the main valve of the gas tank.

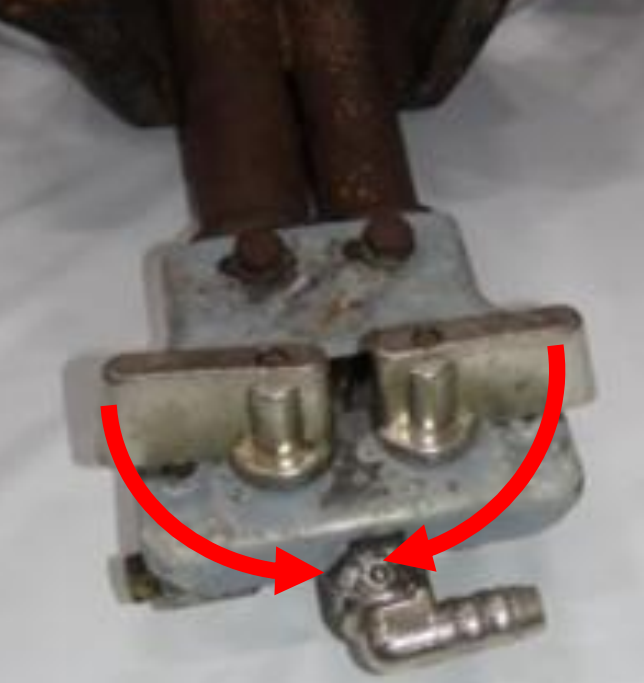

  • The lever can be opened in the direction of the arrow in the diagram.
  • Do not fully open the gas lever at first, as the fire may become too large at the point of ignition.

③Ignition

• Light the stove from the gas injection nozzle.
• Please use a long lighter instead of other lighters such as 100-yen lighters.
• Please visually confirm that the burner is ignited
  • It may be difficult to visually check the fire in a bright place.

④Air Adjustment

• Red fire means incomplete combustion. Adjust the air until the flame becomes blue.
